Carton Box Embossing Press Machine
Product model:Yz91
Product number:47
Feature:
Movable Table Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automatic
BOX-SUPPRESSED PRESS
Yz91 Series

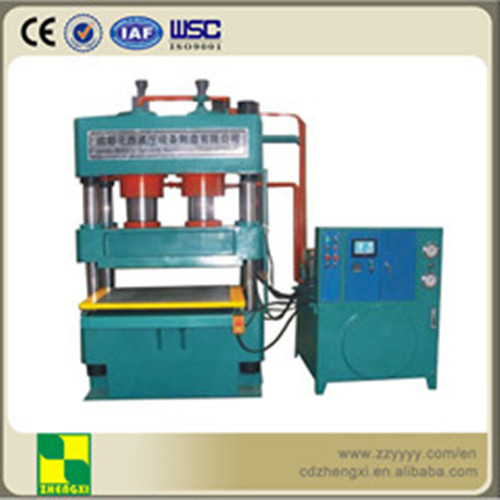

MACHINE APPEARANCE
DATA SHEET
| Name | Unit | Parameter |
| Box-suppressed press | Yz91-250T | |
| Normal Force | KN | 1250*2 |
| Liquid Pressure | Mpa | 20 |
| Stroke | mm | 350 |
| Open Height | mm | 350 |
| Working Table Size | mm | 1100*700 |
| Heating Style | Electric heating | |
| Motor Power | KW | 7.5 |
| Outline | mm | 2900*1100*2800 |
ACCESSORIES BRAND



OPTIONAL ACCESSARIES
